Project Description
Description

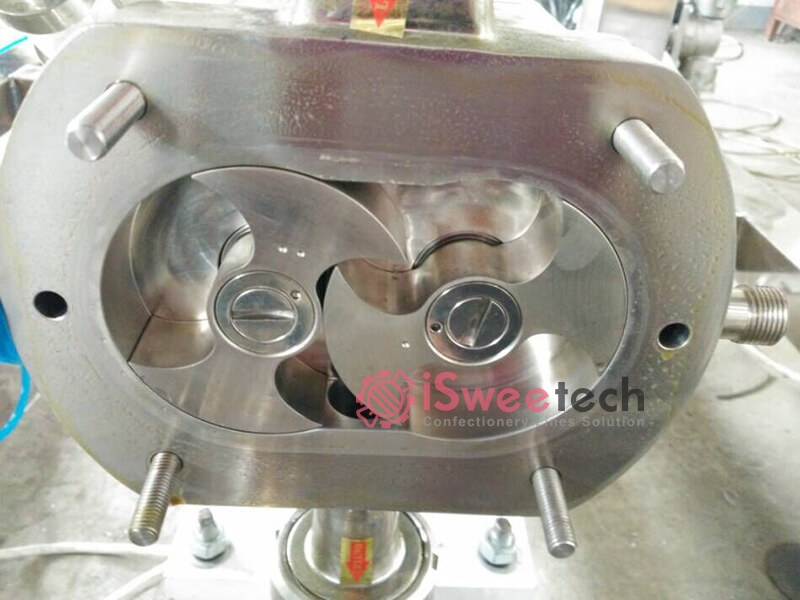

TR series chocolate rotary lobe pump is one of essential equipment during the chocolate processing. It is used for transporting the chocolate paste, which can meet the technical requirement of the continuous chocolate production.
Details
Technical Parameters
| Model | Volume per revolution (L) |
Suggest speed（rpm） | Main power (KW) |
Max.rpm | Weight (Kgs) |
Dimension (LxWxHmm) |
| TR2 | 0.075 | 200~400 | 1.1 | 960 | 15 | 260x180x170 |
| TR3 | 0.095 | 200~400 | 1.5 | 960 | 17 | 265x180x175 |
| TR5 | 0.18 | 200~400 | 2.2 | 700 | 18 | 273x180x175 |
