Project Description

GDT300 Deposited Toffee Production Line

Description

GDT series deposited tofee processing line is specially designed for continours production of various kinds of deposited toffees. It can produce two-color striped depositing, two color double layers depositing, central filling, one color toffee/caramel.

Features

  • PLC /computer process control available for vacuum cooking;
  • Special caramel reactor to enforce the caramel flavor vacuum cooking;
  • An LED touch panel for easy operating;
  • A special designed de-moulding device and moulds guarantee the de-moulding of toffee;
  • Different shaped toffee can be made via change over the moulds;
  • Optional choice of extra chocolate paste injection system for making chocolate-filled toffees.

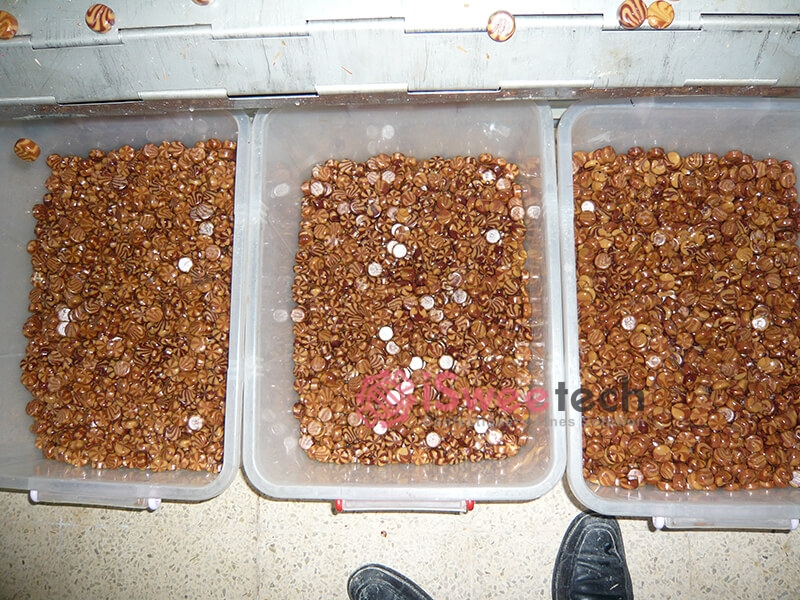

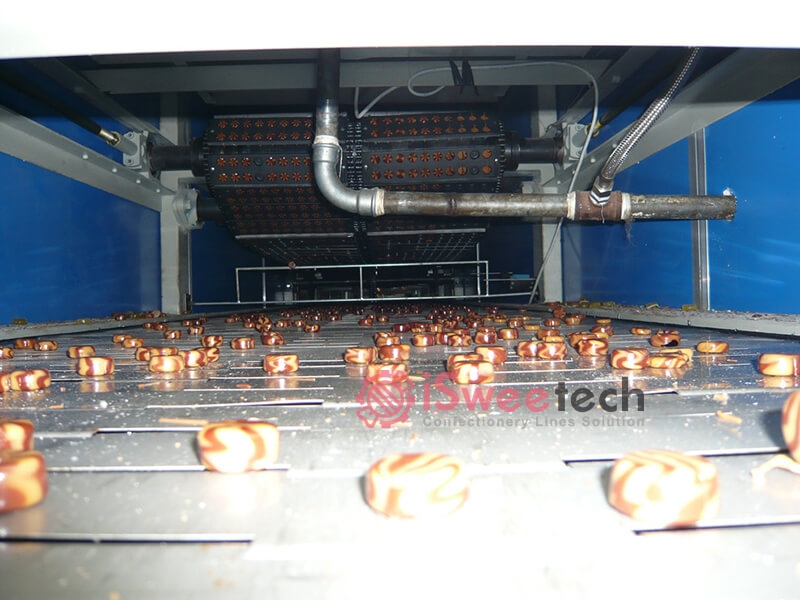

Production Line Details

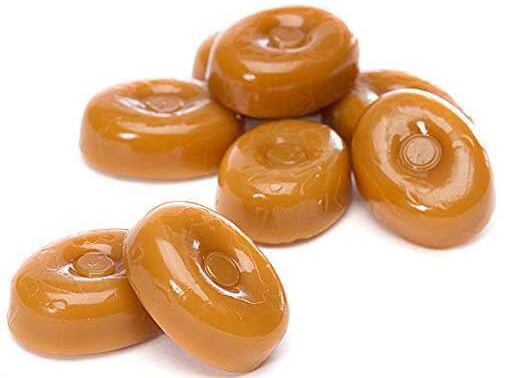

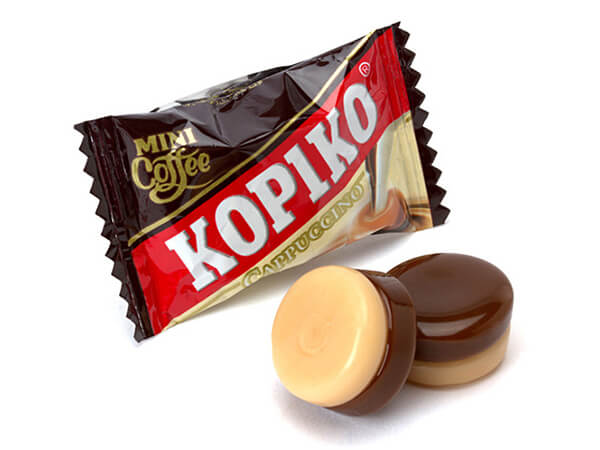

Toffee Samples

Main Technical Parameters

ModelGDT150GDT300GDT600
Production capacity    kg/hMax.150Max.300Max.600
Max. of the product      g777
Speed of stroke        n/min25~3025~3525~35
Steam consumption    kg/h100300500
Steam pressure        Mpa0.2~0.60.2~0.60.2~0.6
Electric power needed35kw/380V45kw/380V60kw/380V
Compressed air consumption0.25mP3P/min0.25mP3P/min0.25mP3P/min
Compressed air pressure0.4-0.6 Mpa0.4-0.6 Mpa0.4-0.6 Mpa
Conditions needed for the cooling system:
1)Room temperature(℃)20~2520~2520~25
2)Humidity (%)555555
Gross weight            Kgs600070008000

The Machinery to Produce Toffee

Auto-weighing System (COOLMIX)

Auto-weighing System (COOLMIX)

Auto-weighing system-AWS COOLMIX offers automatic weighing , mixing and feeding of raw materials with inline transportation to one or more cooking units, without heating or pre-dissolving.

Automatic Toffee Cooking Equipments jinqiutoecap

Automatic Toffee Cooking Equipment

  • Compact modular design;
  • Wide varies of the products;
  • Diversity in product density;
  • Moderate investment;
  • Easy and simple maintenance;
  • PLC control
GDT Depositing and Cooling Section

GDT Depositing and Cooling Section

  • Underband Servo-drive designed depositer: All drive components are mounted on the machine(underband) rather than on the depositing head;
  • The unique design is in compact and simple, which can reduce the movement inertia and weight of the depositing head, thus it can achieve higher the depositor’s running speed to maximize output capacity;
  • Machine is hydraulic free, thus to avoid the risk of oil leakage onto the products;
  • Simple maintenance requirement;
  • Three axis servo control ensures the complete control over the depositing process
FCA Dosing and Mixing Unit

Dosing and Mixing Unit

Accurate metering system with pluger type pump driven by a common variable speed unital for the injection of the liquid additives(flavor, color and acid), the additives are thoroughtly mixed into the cooked mass by jacket stainless inline mixer; in FCA system, it ensures that the end product will always be of a consistent and high quality. Compact design, and fully qutomatic operation.

PLC Controller Hard Candy GD

PLC Controller

  • Full PLC control and touch screen provide full process operation;
  • Recipe managerment and alarm handling;
  • Accurate control of the product dimensions and weight.
GDT Deposited Toffee Production Line Details (1)

GDT Toffee Molds

  • Aluminum with teflon coating /silicon made
  • Mould size:320x74mm
  • Customized shape and weight, designed as per the customer’s requirement
Chocolate-Holding-Tank-And-Pump-Pipes

Fruit Jam Holding Tank And Pump, Pipes

  • Tank Volume: 150Ltr
  • SS Transfer pump
  • Electric Heating and temperature control
  • Motor: China
  • Material: SUS-304 made
