Project Description


Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.


  • The system can finish automatically all processes, i.e Feeding, measuring, filling and bag making, printing date, product output.
  • High measuring accuracy, high efficiency, no broken material.
  • Less manpower, less waste, easy operation and maintenance.

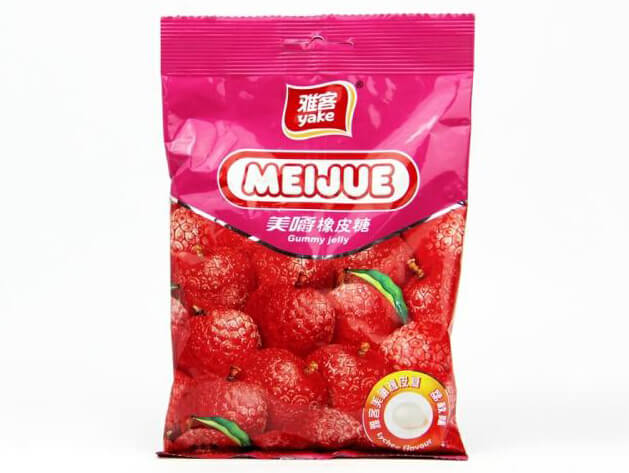

Packaging Type

Bag Sealing Types


Technical Parameters

Capacity50 bag/min, it is according to quality of wrapping and supplies
Bag size(L)60-300mm (W)60-200mm
Film width420mm
Bag typePack with film, upper seal, lower seal and back
seal by automatic bag making machine.
Film thickness0.04-0.09mm
Package materialthermal composite material, like BOPP/CPP, PET/AL/PE etc
Air consumption0.8Mpa 0.5m3/min
Total powder4.745KW
VoltageFour wire three phase 380V 50HZ
Air compressorNot less than 1 CBM
Total height3.308 m

Main Parts

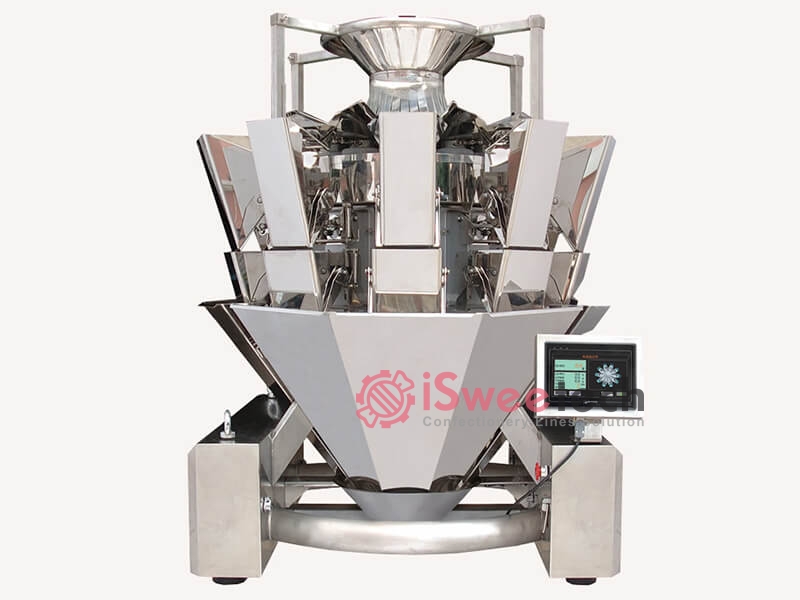

Ten-Hopper Computer Combination Scale

Ten-Hopper Computer Combination Scale

  • Suitable range: dosing and weighing of grain, chip, bar or irregular shaped material such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
  • Select the optimum combination immediately from plenty weighing combinations by powerful software.
  • Adopt high precision digital weighing load cell and A/D module to get preciser weighing than before.
  • LCD operating display with multiple languages such as English, Russian, German, Spanish, Italian, etc.
  • Fast return for investment by largely saving large quantity of raw material and labour cost.

Large Vertical Automatic Packaging Machine

CB520-Large Vertical Automatic Packaging Machine

  • Low cost high gain, high speed and efficiency
  • Famous brand PLC control system, large touch screen, convenient to operate
  • Servo film pulling system, Pneumatic horizontal sealing
  • Minimize the loss with complete automatic warn protection function
  • It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment
  • The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
