Project Description

DF Series Uniplast Die-formed lollipop Processing Line

Description

The production line is a complete plant for making different kinds of die-formed lollipops.

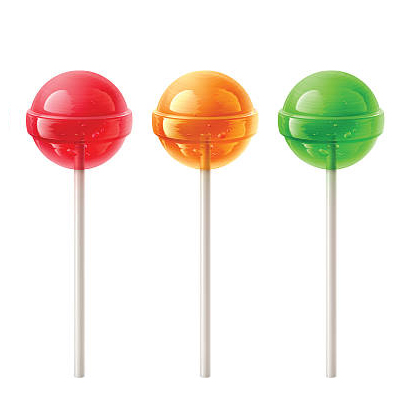

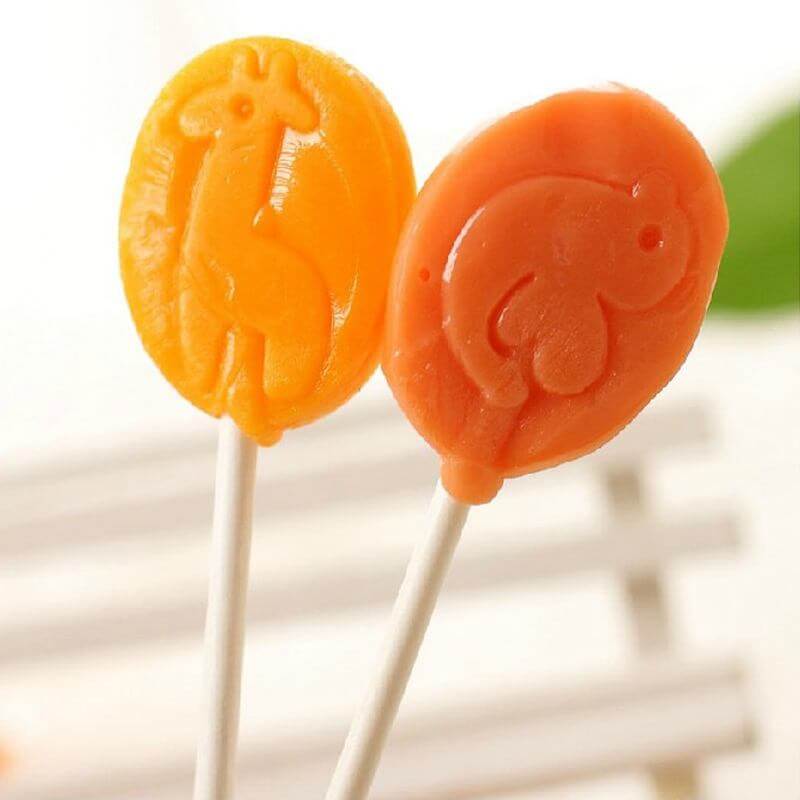

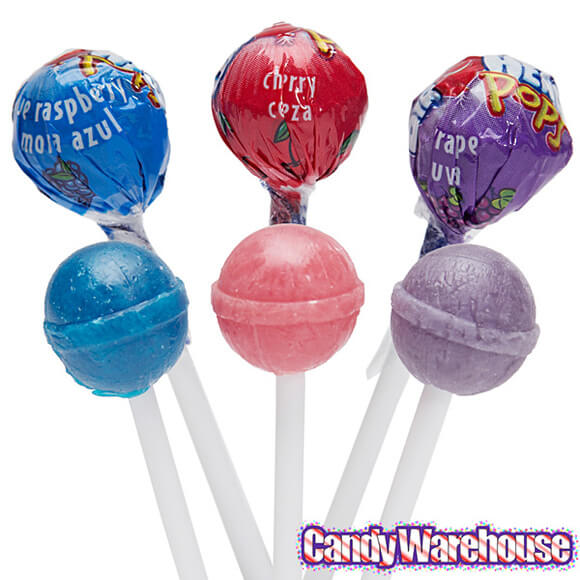

GD Hard Candy Samples

Main Technical Parameters

ModelDF200DF300
Production capacity150~200300kg/h
Diameter of each lollipop Available (mm)25mm(round)25~32mm(round)
Length of stick available (mm)60~100mm60~100mm
Diameter of the stick available (mm)Dia.3.2~4.0mmDia.3.2~4.0mm
Steam consumption kg/hN/M300kg/h
Steam pressureN/M0.2~0.6Mpa
Electric power needed15kw/380V22kw/380V
Conditions:
1.Room temperature20~25℃20~25℃
2.Humidity (%)<55%<55%
Gross weight     ( Kgs)Approx 5000kgApprox 5000kg

The Machinery to Produce Lollipop

Candy Cooker

Sugar Dissolving Cooker

  • Full Stainless Steel 304 whole compact set for the dissolving system(sugar dissolving cooker, gear pump, and storage tank are installed in a compact SS frame body), it saves the space, and is easy for maintenance.
  • Improved connection makes no leakage of the steam.
  • Stainless steel syrup pump replaces the old steel pump, more durable and hygiene.
LX400 Vacuum Cooker With Vacuum Pump

LX400 Vacuum Cooker With Vacuum Pump

  • Feed pump
  • Coil type cooker
  • Vacuum chamber
  • Vacuum pump
  • 2 sets of rotating cooker
  • Food standard Stainless Steel 304 made
Cooling Table

Cooling Table

  • Food Standard Stainless Steel 304 made
  • Size: 1800x800x1000mm
Jam Center-Filling Machine

Jam Center-Filling Machine

  • Food standard tainless Steel 304 made
  • Volume:50Liter
  • Double-jacket
  • Stirrer:0.75kw
TG- Powder Feeding Pump

Powder Feeding Pump

  • Food standard Stainless Steel 304 made
  • Power: 1.1kw
  • Screw type
Batch Roller

Batch Roller

  • Heater Power: 1.2KW
  • Motor: 0.75KW
  • Dimension: 3400×700×1400mm
  • Weight: 500KGS
Rope Sizer

Rope Sizer

  • Motor: 0.75KW
  • Dimension: 1010×645×1200mm
  • Weight: 320KGS
DF-Uniplast Lollipop Die Forming Machine

DF Uniplast Die Forming Machine

  • High stability and easy for the operation;
  • Moulds are made of high quality steel, long-shelf life, high precision;
  • Uniplast dies change can be completed within several minutes
TG- Hard Candy Die Mould

Lollipop Die Mould

  • Made of high quality steel, long-shelf life;
  • High precision
TG PLC Control System

PLC Control System

Full PLC control and touch screen provide full process operation. Recipe management and alarm handling; Accurate control of the product dimensions and weight.

Cooling Tunnel With Refrigerator

Cooling Tunnel With Refrigerator

  • Cooling Layers: 3-5
  • Transporting belt speed: Max.5.5m/min
  • Speed of sieve plate swing: 76times/min
  • Power of convey motor: 0.5kw
  • Power of main motor: 1.5kw
  • Power of Compressor: 7.5kw
