Project Description

Description

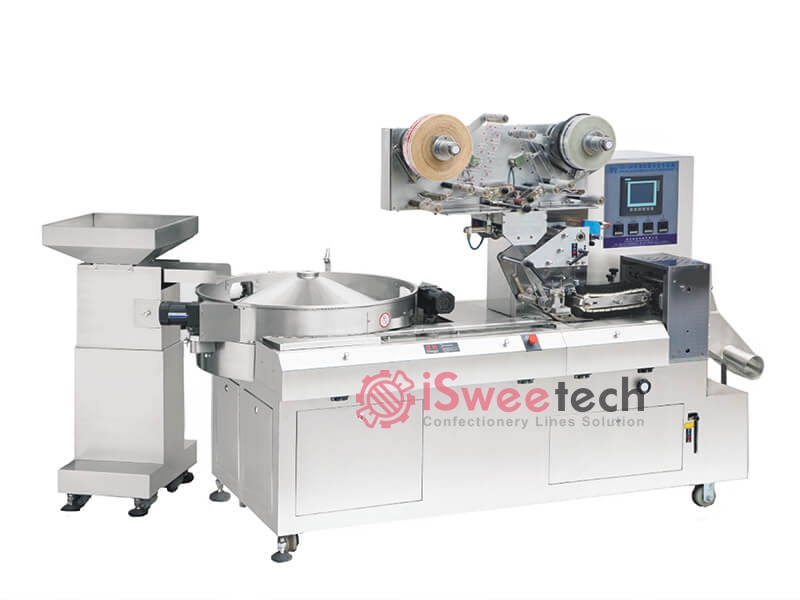

This machine is suitable for simple-grain hot pillow type packing of the candy. It adopts frequency conversion activator to adjust the speed, and equipped with a photocell to track the color mark, low noise, and high speed.

Feature

  • Automatic shows error, safety shield, safety switch
  • Touch screen design, Easy operation
  • Less empty bags, steady packing capacity
  • Easy to change spares, the whole structure designed for long-time using;
  • Low noise

Packaging Type

Technical Parameters

ModelTB800DXD1200
Production Capacity≤800 Grain/min≤1200 pcs/min
Candy shapeRectangle.squate.round.ellipse.column and special
Overall Dimesions2700x1350x1450mm2800x1350x1720mm
Power Supply220v 50hz220v 50hz
Total power3.5KW3.5KW
Packing MaterialHot-sealing materials such as OPP,
CPP, PET metallized film, Al-plastic film,
Paper-rubber complex
Machine weight980kg1400kg
