Project Description
Description

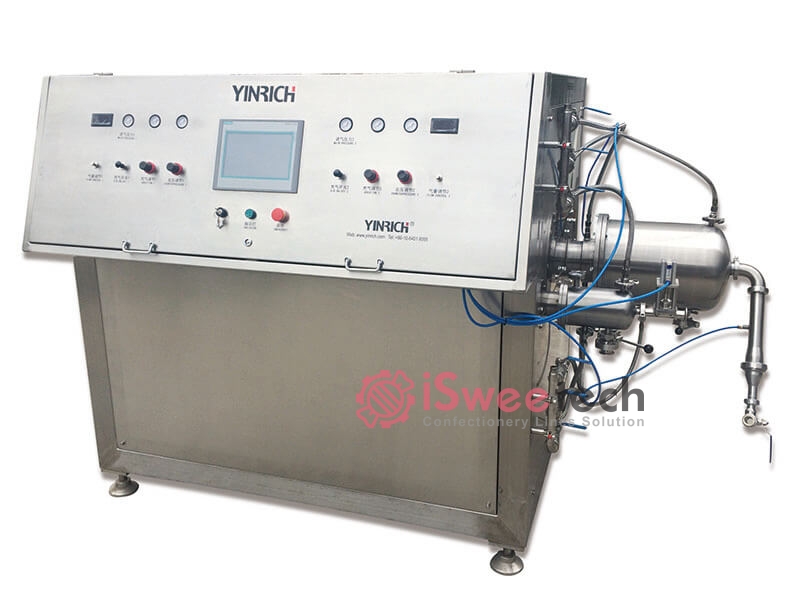

The unit is the aerating machine for the mashmallow, cream, jelly candy, chocolate, candy making plant.
All the slurry and ingredients are mixing with the air at the machine to get the final aerating mass to made different kind candy.
Get In Touch
Technical Parameters
| Items | CQ50 | CQ100 | CQ200 | CQ300 | CQ400 | CQ500 |
| capacity | 70-100kg/h | 100-150kgs/h | 200~250kg/h | 300~350kg/h | 400~450kg/h | 450~500kg/h |
| Power of motor | 5.5Kw | 7.5kw | 7.5Kw | 11KW | 13kw | 15kw |
| Rotating speed | 0—500rpm | 0~500rpm | 0—500rpm | 0~500rpm | 0~500rpm | 0~500rpm |
| Air pressure | 6—8 bar | 6~8bar | 8—10 bar | 8~10bar | 8~10bar | 8~10bar |
| Working pressure | About 3-5bar | 3~5bar | About 4-6bar | About5~8bar | About 5~8bar | About 5~8bar |
| Voltage | 380v | 380V | 380v | 380V | 380V | 380 |
| Total Weight of whole unit | 400kg | 500kgs | 700kg | 800kg | 900kg | 1200kgs |
