Project Description

Description

This is the newly developed wrapping machine specially designed for ball-type lollipops. It is high speed and reliable function.

Feature

  • Microcomputer automatic control
  • Automatic lollipop arranging and feeding
  • The AC motor with frequency converter realizes stepless variable speed control
  • Lollipops contact parts are made by Stainless steel 304(Food standard)
  • Easy cleaning

Packaging Type

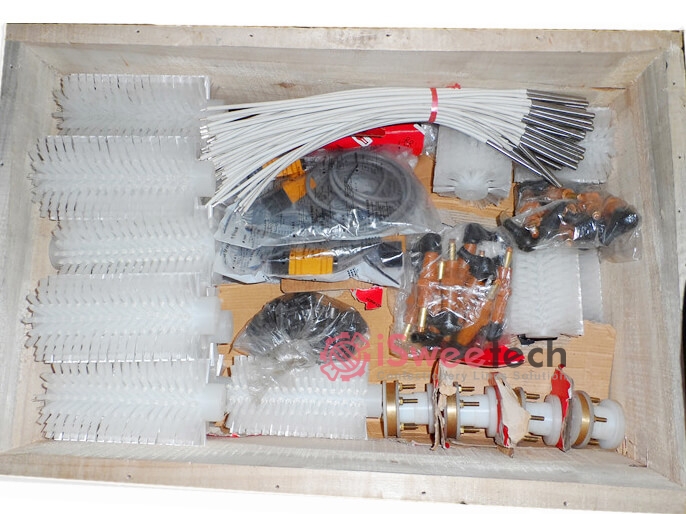

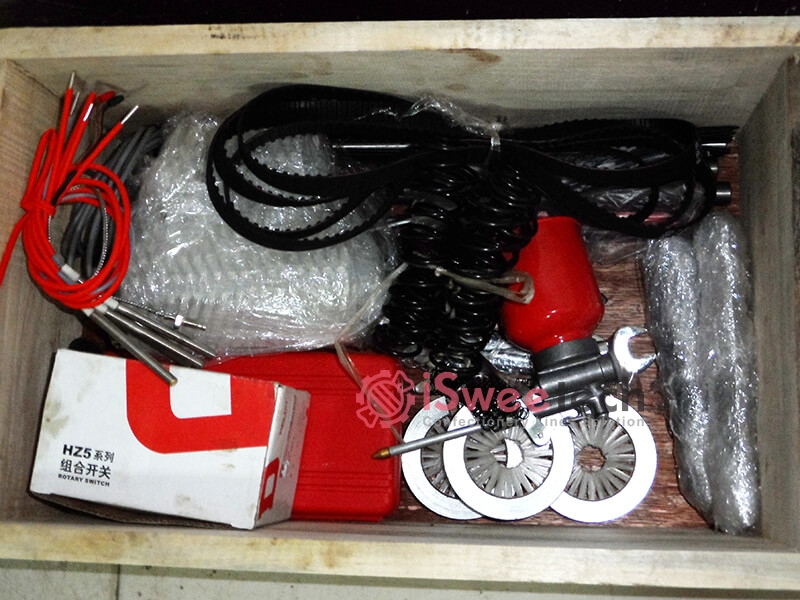

BBJ Parts

Technical Parameters

Model BBJ-II WBB-400
Wrapping film sizeMax 125 x125 mmMax 125 x125 mm
Lollipop diameterΦ18~30mmΦ18~30mm
Wrapping speed120~130pcs/min250-320 pcs/min
(based on the lollipop size)
Packaging materialsBOPP/CPP, PET/CPP and other heat sealable materials
Total power2.1KW6KW
Dimension2500 x 900 x 1500 mm2018 x1700 x 1888
Gross weight1200 KGS1500KGS
